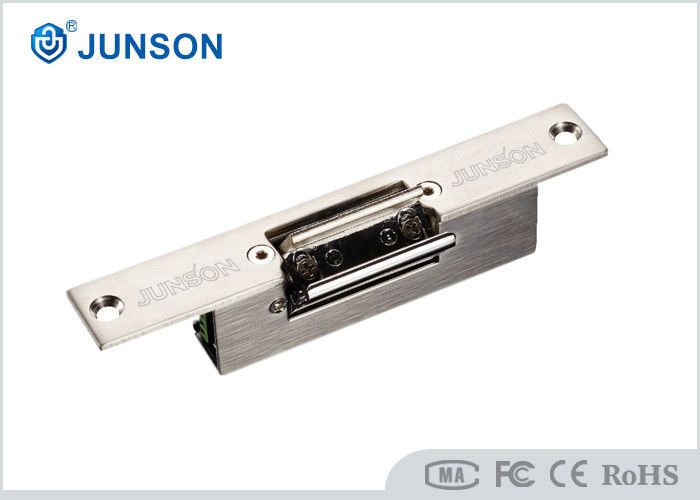

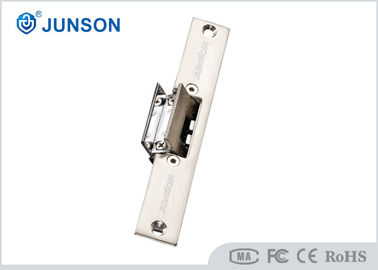

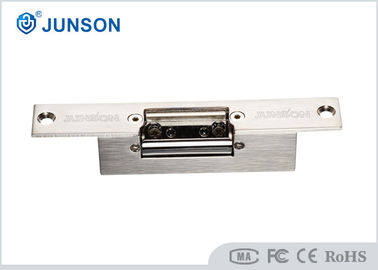

Mechanical Fail-Safe Door Strike for Glass Doors 800kg Holding Force
Detail produk:
| Tempat asal: | Cina |
| Nama merek: | JUNSON |
| Sertifikasi: | CE/ROHS/FCC |
| Nomor model: | JS-135F |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 10 pcs |
|---|---|
| Harga: | Bisa dinegosiasikan |
| Kemasan rincian: | dikemas dalam karton |
| Waktu pengiriman: | 2-7 hari kerja setelah menerima pembayaran Anda |
| Syarat-syarat pembayaran: | T/T, PayPal atau Western Union di muka |
| Menyediakan kemampuan: | 30.000 pcs per bulan |
|
Informasi Detail |
|||
| Model: | JS-135F | Nama Produk: | Strike listrik |
|---|---|---|---|
| Fitur: | Gagal aman | NC-Tidak ada tipe: | Bisa disesuaikan |
| Catu daya: | 12v | Sinyal keluar: | N/a |
| Struktur Serangan: | Pengecoran seng | Kekuatan penahan: | 800kg |
Deskripsi Produk
Mechanical Fail-Safe Door Strike for Glass Door with 800kg Holding Force
JS-135F lock is designed for narrow frame doors, featuring an adjustable spring bolt for continuous open mode. A versatile, durable solution from our full product range.
Parameters:
|
Lock Dimension |
160Lx25Wx31H(mm) |
| Weight | 0.4kg |
|
Standard Packing |
60pcs |
| Cartons size | 54L * 20W * 30.5H (cm) |
|
Holding Strength |
800kg |
|
Style |
Fail Safe |
|
Voltage |
12V DC |
|
Current |
200mA |
|
Available lock |
Rim lock, mechanical lock |
|
Suitable for |
Narrow wooden door, narrow metal door |
|
Special design |
Adjust lock tongue to NO type |
|
Surface Temp |
Within + 20℃ |
|
Operating Temp |
-10℃ - 55℃ |
|
Suitable Humidity |
0-90% (non-condensing) |
|
Finishing for lock |
Coating nickel |
|
Strike Structure |
Stainless Steel |
Features:
-
High Holding Force: Supports up to 800kg.
-
Durable Materials: Constructed with aluminum housing and stainless steel bolt.
-
Reliable Performance: Tested to over 1,000,000 cycles for long-term use.
-
Certified Quality: CE certified by the European Union and MA certified by China Public Security Office.
FAQ:
Q: What’s your MOQ?
A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
Q: Do you provide sample ? Is it free?
A: If the sample is low value, we will provide the free sample with freight collect. But for some high value samples, we need to collect the sample charge.
Q: How can I get a quote?
A:Contact us with specification: such as material, design, size, shape, color, quantity, surface finishing, etc.
Q: What's the trade term and payment term?
A:Amount less than $1000, 100% paid before production, more than $1000 can be negotiated!
Q: How long is your delivery time?
A: The general delivery time is 30-45 days after receiving your order confirmation. Another, if we have the goods in stock, it will only take 1-2 days.
Quality Control
We have QC person stay on the production lines do to the inspection.All products must have been inspected before delivery.we do inline inspection and final inspection.
1.All raw material checked once it arrive our factory.
2.All pieces and logo and all details checked during production.
3.All packing details checked during production.
4.All production quality and packing checked on final inspection after finished.
